Identification of methylation driven biomarkers for diagnosis and prognosis in colorectal cancer by Integrative Analysis of TCGA, GTEx, and GEO database

doi:10.21203/rs.3.rs-964805/v1

Background: This work investigates the use of methylation driven biomarkers for diagnosis and prognosis in colorectal cancer (CRC) by mining DNA methylation and gene expression data from The Cancer Genome Atlas (TCGA), the Genotype-Tissue Expression project (GTEx), and the Gene Expression Omnibus (GEO). Methods: The differentially expressed genes (DEGs) and differentially methylated genes (DMGs) were screened using mRNA expression and DNA methylation data from TCGA, respectively. The methylation driven genes (MDGs) of CRC were further identified using the MethylMix R package. Subsequently, the MDGs were analyzed with Random Forest (RF), support vector machine (SVM), and logistic regression (LR) algorithms to establish diagnosis prediction models as independent indicators using mRNA expression data from TCGA and GTEx. The RF algorithm was determined to be the most suitable and used to construct the diagnostic model with the combined MDGs, which was then validated by GSE39582 from GEO. Prognostic biomarkers were used to establish the risk score model, which was generated by univariate and multivariate Cox regression analyses. Moreover, we constructed and validated a nomogram that integrated the risk score and clinical information, including age, gender, and tumor stage. Results: 9 out of 10 MDGs performed well as independent diagnostic predictors, and STK33 and EPHX4 were also found to be associated with overall survival (OS). The results of the nomogram suggest that it is a better predictive model for prognosis than the risk score model. Conclusion: Our findings suggest that the identified MDGs could be biomarkers for diagnosis and prognosis of CRC.

CRC is one of the most prevalent malignant tumors and the second leading cause of mortality worldwide[1]. Despite the progress made in diagnosis and therapy, CRC patients usually develop recurrence and metastasis, leading to dramatic decreases in the 5-year survival rate[2]. Therefore, there is an urgent need to improve the diagnosis, treatment, and prognosis for patients with CRC.

Molecular characterization has great potential for improving understanding of tumor development and is extensively utilized to predict tumor diagnosis, treatment, and prognosis[3, 4]. Using bioinformatics methods and machine learning, various types of biomarkers have been found to be related to the diagnosis and prognosis of tumors, including microRNAs[5, 6], long non-coding RNAs[7, 8], DEGs[9], DNA methylation [10, 11] and others.

DNA methylation as an important regulator of gene expression has been researched in various cancers, such as endometrial cancer[12], prostate cancer [13](R Lesche et al. 2007), and hepatocellular carcinoma [14](RH Xu et al. 2017). Although the mechanism of DNA methylation is not fully understood, it is assumed that DNA methylation could affect the binding of the transcription factors to their DNA targets sites, and then alter the expression of downstream genes [15-17](R Jaenisch & A Bird 2003; T Vaissiere et al. 2008; M Yassi et al. 2018), which may promote oncogenesis [15, 18](G Egger et al. 2004; JG Herman & SB Baylin 2003). MethylMix, a R package that can identify MDGs through integrative analysis of DNA methylation and gene expression data from normal samples and tumor samples[19, 20], was used to investigate the relationship between MDGs and the prognosis of CRC patients[21, 22]. However, no studies have reported whether MDGs could be used as diagnostic indicators for CRC.

The public databases, especially TCGA and GEO, provide convenient access to systematic collections of sequencing data with detailed clinical and pathological information which have been applied in malignant tumor research. Meanwhile, the GTEx database contains a large number of gene expression samples of normal human patients that have been integrated with TCGA or GEO in various studies [23-25].

Based on existing literature data, we carried out studies to identify a set of MDGs using DNA methylation and gene expression data from TCGA, GEO, and the GTEx, and construct an independent diagnosis model using RF, SVM, and LR algorithms. Additionally, the MDGs, the presumed potential prognostic indicators, were analyzed using univariate and multivariate Cox regression analyses. Our findings may suggest that the potential methylation driven biomarkers could prompt more individualized diagnoses and therapies for CRC.

2.1 TCGA and GTEx Data acquisition

The mRNA expression (RNA-seq data from Illumina platform) and DNA methylation data (Illumina Human Methylation 450) of CRC from TCGA and the mRNA expression of normal samples from the GTEx were downloaded from the UCSC Xena platform ( https://xenabrowser.net/datapages/). Subsequently, the samples from TCGA were divided into the normal group and the tumor group. 667 samples (51 normal and 616 tumor) were selected for DEG analysis and MDG analysis was performed on 433 samples (45 normal and 388 tumor), detailed information is shown in Table 1. We selected 307 normal samples (123 females and 184 males) of mRNA expression data of colon tissue from the GTEx to provide supplementary data for normal samples from TCGA.

2.2 GEO data acquisition

We downloaded gene expression data by array (GSE21815, GSE28000, GSE39582, and GSE44076) and methylation data by genome tilling array (GSE48684, GSE53051, GSE77718, and GSE101764) from the GEO database (https://www.ncbi.nlm.nih.gov/geo/), and the sample size of each dataset can be found in Figure 1. Among them, GSE39582 has detailed clinical and phenotypic information, with a total of 566 tumor and 19 normal samples (Table 1).

2.3 Screening DEGs, DMGs and MDGs

We filtered out the genes with a read count of less than 10 in more than 50% of all the samples. The DEGs were identified by comparing the tumor group with the normal groups using the limma R package[26], with the cutoff criteria defined as | log2 fold change (FC)| >0.585 and adjusted P-value < 0.001. In addition, the probe with the highest absolute value of deltaBeta and adjusted P-value less than 0.001 was selected as the representative of gene methylation level using the ChAMP R package[27], and |deltaBeta| >0.3 was used to screen DMGs.

Subsequently, the tumor methylation matrix, the normal methylation matrix, and the tumor expression matrix with overlapping DEGs and DMGs were constructed to identify MDGs using the R package MethylMix[19, 20]. Significant methylation events were filtered using the correlation coefficient < -0.3 and P-value < 0.05 as the cutoff criteria, and the correlation of the MDGs was visualized by the corrplot R package. The unpaired t test statistically analyzed the differences of the MDGs between the tumor samples and the normal samples.

2.4 Validation of MDGs using GEO datasets

To validate the MDGs, the gene expression profiling datasets (GSE21815, GSE28000, GSE39582, and GSE44076) were separately analyzed by the online software GEO2R (http://www.ncbi.nlm.nih.gov/geo/geo2r/), and the expression value of each MDG was obtained. The methylation value of each MDG in the gene methylation profiling datasets (GSE48684, GSE53051, GSE77718, GSE101764) was calculated using the ChAMP R package.

2.5 Identification and validation of diagnosis biomarkers

The mRNA expression datasets from TCGA and the GTEx were integrated and randomly divided into a training dataset and a validation dataset with a 3:1 ratio in tumor samples and normal samples; principal component analysis (PCA) investigated the distribution of the combined samples of TCGA and the GTEx. To choose the optimal algorithm to build the diagnosis model, three different algorithms were used to evaluate the accuracy of the 10 MDGs as an independent predictor with default parameters and calculate the P-value of each MDG. The chosen algorithm was used to further evaluate the combined indicator for diagnosis of CRC. The GSE39582 dataset, containing 7 of the MDGs, was analyzed as a validation dataset in combination with training datasets from TCGA and the GTEx, the receiver operating characteristic (ROC) curve was utilized to depict the sensitivity and specificity of the diagnosis models using independent MDGs or the combined MDGs panel.

2.6 Identification and evaluation of prognosis biomarkers

The mRNA expression data with OS information was selected to determine the prognostic biomarkers. The univariable Cox proportional hazards regression model was produced using the Survival R package, with the P-value cutoff of 0.05. Subsequently, Kaplan-Meier survival and multivariate Cox regression analyses were performed to determine independent prognostic factors; the coefficient of the MDGs was obtained from the multivariate Cox results. The risk score based on the signature of each CRC patient was calculated using the following formula:

MDGs risk score=

To further evaluate the predictive efficiency of the constructed MDGs risk score model, we used the ROC curve to reflect the sensitivity and specificity of survival prediction and quantified the area under the curve (AUC) using the survivalROC R package. The optimal cutoff risk score was designated at the turning point of the ROC curve, where the difference between true positive and false positive is the most significant. The patients above the cutoff value were in the high-risk group, while the patients below it was in the low-risk group. In addition, Kaplan-Meier curves were plotted to distinguish the two groups using the survminer R package.

2.7 Construction and validation of the nomogram model

To improve the accuracy of the prognostic model, we constructed a nomogram that visualized the prognostic value of different patients’ characteristics by integrating risk score and clinical information, including age, gender, and tumor stage. This analysis was performed using the rms R package to plot calibration curves to evaluate the predicted probabilities in comparison with the ideal predictive line. In addition, a forest plot based on univariable Cox analysis illustrated the relationship between clinical information and OS. Moreover, the Concordance index (C-index) indicated the predictive accuracy of the nomogram.

3.1 Identification of MDGs as candidate diagnostic and prognostic biomarkers

The data generation and analysis workflow are shown in Figure 1. After merging the expression datasets and methylation datasets of colon adenocarcinoma (COAD) and rectum adenocarcinoma (READ) from TCGA, and expression datasets from TCGA and the GTEx, respectively, PCA showed that the normal samples and the tumor samples were well separated. The samples of READ and COAD, TCGA, and the GTEx were randomly distributed, which indicated that the merged data sets could be used for further analysis (Figure S1 A-B). Expression and DNA methylation data from TCGA were separately analyzed to screen DEGs and DMGs by comparing normal samples and tumor samples. As a result, 522 DEGs (266 upregulated and 256 downregulated) were identified (Figure 2A and Additional file 1: Table S1), and the detailed information about DMGs was shown in Additional file2: Table S2.

Subsequently, R package MethylMix was used for identifying MDGs with a filter criterion set as Cor < -0.3, | deltaBeta | > 0.3 and adjusted P-value < 0.001, and 10 MDGs were identified as candidate diagnostic and prognostic biomarkers. Pearson’s correlation test statistically analyzed the correlations between methylation degree and gene expression of the MDGs using the cor.test function of the R language (https://www.r-project.org/) (Figure 3) and found that the methylation degree of those 10 MDGs was negatively correlated with their expression. The higher the methylation degree was, the lower the gene expression, and the detailed information of the MDGs is shown in Table 2. The correlations between each candidate biomarker, which may help us choose the optimal independent gene set for the diagnosis of CRC, were investigated using the corrplot R package (Figure 2B). In addition, the unpaired t test was conducted to quantify the difference of each candidate biomarker between the normal samples and the tumor samples; significant difference was found in all the candidate biomarkers (Figure 2C)

Moreover, we verified the gene differences and methylation differences of these MDGs in other datasets (4 expression GEO datasets and 4 methylation GEO datasets) and found that the trend was consistent. The significant differences of gene expression and methylation of these MDGs were verified in at least one other dataset (Table 3). The DEGs of each GEO dataset is shown in Figure S1 C-F.

3.2 Evaluation of the MDGs as candidate diagnostic biomarkers

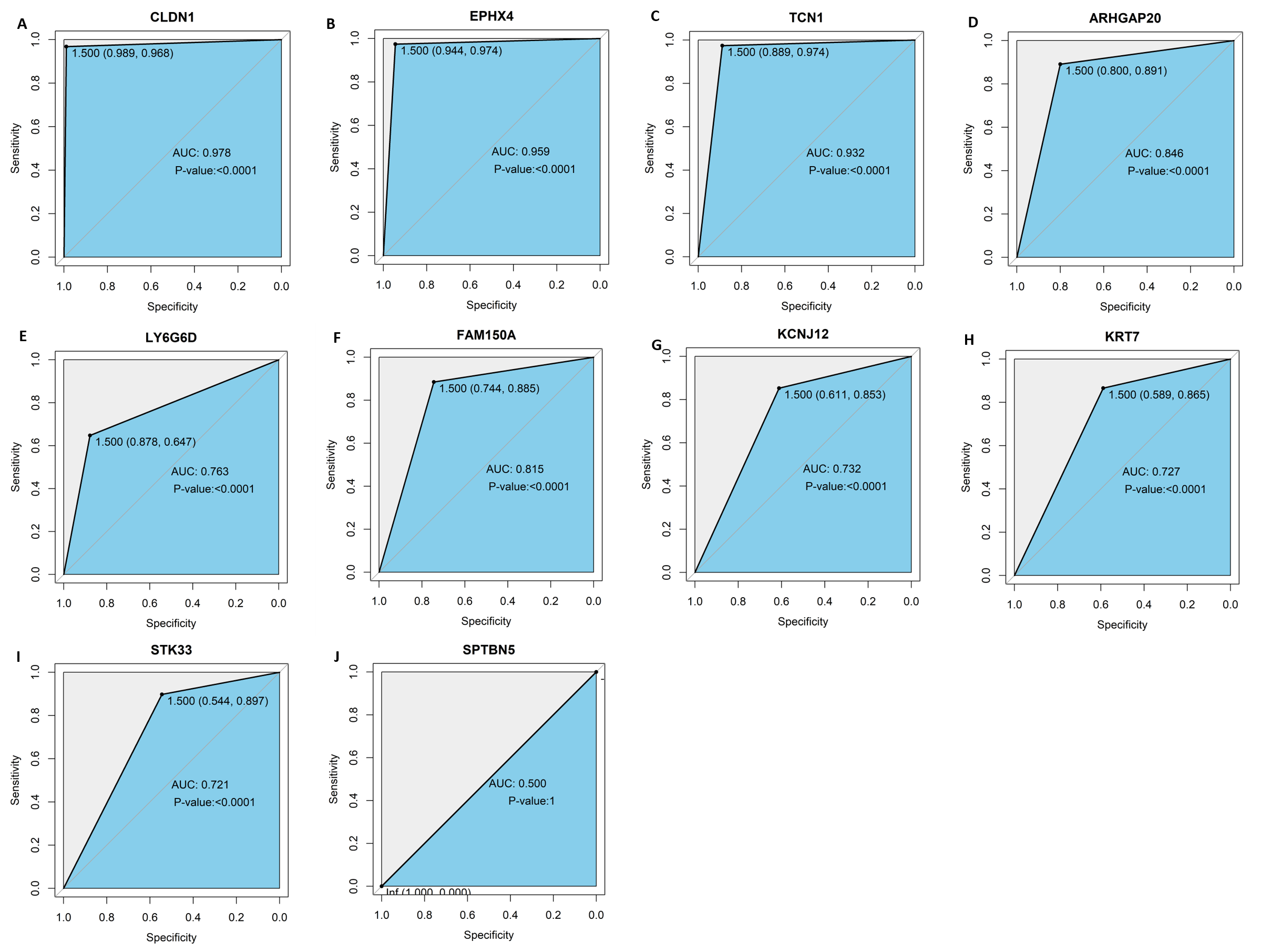

We used three different algorithms to evaluate the performance of MDGs in establishing prognosis models. Among them, SVM algorithms performed the worst (Figure S2); RF and LR algorithms had similar results, which can be seen in Figure 4 and Figure S3, respectively. However, when using the LR algorithm to construct prediction models with joint MDGs, the algorithm does not aggregate; using the RF algorithm, the calculated P-value of each MDG is less than 0.0001, while in the other two algorithms, the P-value of SPTBN5 is greater than 0.0001 (Table 4). Therefore, the RF algorithm was selected to further build the diagnostic model of the joint MDGs. When using MDGs to build prediction models with the RF algorithm, 9 out of 10 MDGs revealed excellent performance as independent diagnostic predictors, where the area under the curve (AUC) of CLDN1 is 0.988, EPHX4 is 0.971, TCN1 is 0.966, ARHGAP20 is 0.921, LY6G6D is 0.886, FAM150A is 0.869, KCNJ12 is 0.857, KRT7 is 0.860, and STK33 is 0.842 (Figure 4 A-I). Additionally, the performance of the combined MDGs were further assessed in samples from TCGA-GTEx and GEO and the outcome of the AUC was 1.0 and 0.996, respectively (Figure 4 K, L). The importance of each predictor for the combined predictive model is shown in Table 5. The larger the number of MeanDecreaseAccuracy and MeanDecreaseGini, the more important the predictor for the model. It was found that the numbers of MeanDecreaseAccuracy and MeanDecreaseGini were positively correlated with the AUC of the predictive model of the predictor. Moreover, unsupervised hierarchical clustering of the combined panels with ten makers or seven makers indicated that the constructed models could accurately distinguish CRC patients from normal controls (Figure 2D-G). Collectively, the 10 MDGs could be candidate biomarkers for diagnosis of CRC samples and 9 of them performed well as independent indicators.

3.3 Construction and evaluation of MDGs related prognostic model in CRC patients

Univariate Cox regression analysis revealed that 2 of the 10 MDGs were independent prognostic indicators of OS, as the hazard ratio of STK33 was 1.09 (95 % CI: 1.01-1.17, P = 0.021) and EPHX4 was 0.91 (CI: 0.83-0.99, P = 0.032) (Figure 5A). Subsequently, Kaplan-Meier analyses and log-rank tests using STK33 and EPHX4 as independent prognostic indicators indicated that patients with high-risk scores suffered poor OS, with the P-value of 0.008 and 0.047, respectively (Figure 5B, C). We calculated the risk score of each CRC patient using the formula as follows: (1.09 STK33) + (0.91 EPHX4); then CRC patients (n=635) were categorized into the high-risk score group or the low-risk score group, according to the optimal cut-off value of the risk score obtained from the survminer R package. The results also indicated that high-risk score patients had a worse OS rate than low-risk score patients (P < 0.0001) (Figure 5D). The prognostic accuracy of the risk score model was investigated as a continuous variable (Figure 5E). The AUC of the prognostic model for OS was 0.569 at 3 years, 0.633 at 4 years, and 0.626 at 5 years.

3.4 Construction and validation of the nomogram model

In the nomogram the score for each variable can be found on the point scale, then used to estimate the probability of survival at 1, 3, and 5 years by calculating the total score (Figure 6A). The forest plot shows that patient characteristics, including age (>60), tumor stage (III and IV), and risk score are associated with OS (P-value <0.001) (Figure 6B).

To validate the nomogram’s performance, we plotted the calibration curves and observed that the predictive curves were close to the ideal curve (Figure 6C-E), which indicates good performance. Furthermore, the predictive accuracy of this nomogram (C-index: 0.72) was higher than the risk score model (C-index: 0.57).

Many previous studies have reported that DMGs and DEGs can be used as prognostic and diagnostic biomarkers for CRC[11, 28-30]. A previous study also reported that MDGs can assist with determining the prognosis of CRC patients[21]. However, no studies researched the relationship between MDGs and the diagnoses of CRC patients. In this study, we investigated the interplay between DMGs and DEGs and chose the genes with negative and high correlation, namely MDGs, as candidate predictors for the prognosis and diagnosis of CRC. We identified 10 MDGs that could be considered as potential diagnostic and prognostic predictors for CRC patients: CLDN1, EPHX4, TCN1, LY6G6D, FAM150A, KRT7, STK33, ARHGAP20, KCNJ12 and SPTBN5. Among them, STK33 and EPHX4 were correlated with both diagnosis and prognosis of colorectal cancer, while the others only performed well as diagnostic indicators of colorectal cancer. Consistent with our findings, various studies have demonstrated that STK33 is overexpressed in hypopharyngeal squamous cell carcinoma [31], hepatocellular carcinoma[32], and human large cell lung cancer[33]. STK33 hypermethylation may be a biomarker for the diagnosis, prognosis, and suitable treatment of CRC [34](MD Yin et al. 2018). Previous studies demonstrated that EPHX4 was significantly upregulated in rectal cancer [35](H Flebbe et al. 2019) and pseudomyxoma peritonei [36]. However, the pathological role and clinical significance of EPHX4 for CRC have rarely been reported. As a member of the claudin family and tight junction-related proteins, CLDN1 was demonstrated to be associated with dysfunction or abnormal expression in various tumors [37, 38]. In addition, a previous study revealed that aberrant expression of CLDN1 regulated the AMPK/STAT1/ULK1 signaling pathways, leading to the promotion of proliferation and metastasis in esophageal squamous cancer[39]. CLDN1 was experimentally demonstrated to be remarkably upregulated in CRC patients and could be considered as a methylated diagnostic biomarker in CRC patients and normal control groups[40]. A growing number of studies have verified that the overexpression of TCN1 is associated with tumor invasion and metastasis in CRC [41, 42] and experimentally demonstrated that TCN1 was significantly overexpressed in colon cancer tissues compared with normal controls at the mRNA and protein level, and could be considered as potential prognostic biomarker of colon cancer[43]. A previous study showed that KRT7 plays a significant role in tumor metastasis and is considered as a prognostic biomarker and potential target for therapeutic prevention of metastasis[44](L Jiang et al. 2019). In addition, KRT7 was down-regulated and hypermethylated in CRC tissues compared with adjacent normal tissues and may lead to the occurrence of CRC[45](JY Wang et al. 2017). Y6G6D belongs to a cluster of leukocyte antigen-6 genes, which was conspicuously overexpressed (around 15-fold) and considered a promising biomarker of immunotherapy for microsatellite stable CRC[46]. FAM150A can activate lymphoma kinase (ALK) by binding to its extracellular domain[47, 48]; ALK has been used as an effective biomarker in various human cancers, such as neuroblastoma and non-small cell lung cancer [49]. Additionally, the DNA methylation status of FAM150A was indicated to be a diagnostic and prognostic indicator for clear cell renal cell carcinoma (ccRCC) using the high-performance liquid chromatography method[50]. However, no studies found that FAM150A was associated with CRC. To the best of our knowledge, there is still a lack of research about the relationship between ARHGAP20, KCNJ12, and SPTBN5 and oncogenesis, which may represent novel predictive biomarkers.

Furthermore, we constructed a nomogram based on the multivariable Cox regression coefficients of risk score, age, gender, and tumor stage to further validate our findings. The C-index of the nomogram was significantly higher than the C-index of the risk score model, which was remarkably associated with OS, suggesting that the two MDGs could be used as prognostic indicators.

In conclusion, we identified 10 MDGs that could be used as potential biomarkers for CRC, of which 9 performed well as independent diagnostic predictors and 2 could be used as prognostic indicators.

SUPPORTING INFORMATION

Additional file 1: Table S1. Detailed information of DEGs.

Additional file 2: Table S2. Detailed information of DMGs

DATA AVAILABILITY STATEMENT

The data that support the findings of this study are openly available in TCGA and GTEx from the UCSC Xena (https://xenabrowser.net/datapages/) and GEO with accession numbers GSE21815, GSE28000, GSE39582, GSE44076, GSE48684, GSE53051, GSE77718, and GSE101764.

ACKNOWLEDGEMENTS

This work was supported by a grant from the Key Science and Technology Program of Shaanxi Province (2019ZDLSF02-05) and National Natural Scientific Foundation of China (81974378 and 82003115).

AUTHOR CONTRIBUTIONS

Lichao Cao and Erfei Chen were involved in the study concept and design, and drafting the manuscript. Hezi Zhang and Ying Ba put forward some kind suggestions. Tong Li and Jin Yang helped analyze and interpret the data.

CONFLICT OF INTEREST STATEMENT

The authors declare that they have no conflict of interest.

1. Bray F, Ferlay J, Soerjomataram I, Siegel RL, Torre LA, Jemal A: Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA: a cancer journal for clinicians 2018, 68(6):394-424.

2. Siegel RL, Miller KD, Goding Sauer A, Fedewa SA, Butterly LF, Anderson JC, Cercek A, Smith RA, Jemal A: Colorectal cancer statistics, 2020. CA: a cancer journal for clinicians 2020, 70(3):145-164.

3. Wang T, Birsoy K, Hughes NW, Krupczak KM, Post Y, Wei JJ, Lander ES, Sabatini DM: Identification and characterization of essential genes in the human genome. Science 2015, 350(6264):1096-1101.

4. Dexheimer GM, Alves J, Reckziegel L, Lazzaretti G, Abujamra AL: DNA Methylation Events as Markers for Diagnosis and Management of Acute Myeloid Leukemia and Myelodysplastic Syndrome. Disease markers 2017, 2017:5472893.

5. Chen W, Gao C, Liu Y, Wen Y, Hong X, Huang Z: Bioinformatics Analysis of Prognostic miRNA Signature and Potential Critical Genes in Colon Cancer. Front Genet 2020, 11:478.

6. Zhou XG, Huang XL, Liang SY, Tang SM, Wu SK, Huang TT, Mo ZN, Wang QY: Identifying miRNA and gene modules of colon cancer associated with pathological stage by weighted gene co-expression network analysis. OncoTargets and therapy 2018, 11:2815-2830.

7. Lin Y, Pan X, Chen Z, Lin S, Chen S: Identification of an Immune-Related Nine-lncRNA Signature Predictive of Overall Survival in Colon Cancer. Front Genet 2020, 11:318.

8. Jin L, Li C, Liu T, Wang L: A potential prognostic prediction model of colon adenocarcinoma with recurrence based on prognostic lncRNA signatures. Human genomics 2020, 14(1):24.

9. Yang Z, Chen Y, Wu D, Min Z, Quan Y: Analysis of risk factors for colon cancer progression. OncoTargets and therapy 2019, 12:3991-4000.

10. Hao X, Luo H, Krawczyk M, Wei W, Wang W, Wang J, Flagg K, Hou J, Zhang H, Yi S et al: DNA methylation markers for diagnosis and prognosis of common cancers. Proceedings of the National Academy of Sciences of the United States of America 2017, 114(28):7414-7419.

11. Yang C, Zhang Y, Xu X, Li W: Molecular subtypes based on DNA methylation predict prognosis in colon adenocarcinoma patients. Aging 2019, 11(24):11880-11892.

12. Ying J, Xu T, Wang Q, Ye J, Lyu J: Exploration of DNA methylation markers for diagnosis and prognosis of patients with endometrial cancer. Epigenetics-Us 2018, 13(5):490-504.

13. Lesche R, Payne S, Model F, Weiss G, Sledziewski A: DNA methylation markers for diagnosis and prognosis of prostate cancer. Tumor Biol 2007, 28:51-51.

14. Xu RH, Wei W, Krawczyk M, Wang W, Luo H, Flagg K, Yi S, Shi W, Quan Q, Li K et al: Circulating tumour DNA methylation markers for diagnosis and prognosis of hepatocellular carcinoma. Nature materials 2017, 16(11):1155-1161.

15. Herman JG, Baylin SB: Gene silencing in cancer in association with promoter hypermethylation. The New England journal of medicine 2003, 349(21):2042-2054.

16. Vaissiere T, Sawan C, Herceg Z: Epigenetic interplay between histone modifications and DNA methylation in gene silencing. Mutation research 2008, 659(1-2):40-48.

17. Yassi M, Shams Davodly E, Mojtabanezhad Shariatpanahi A, Heidari M, Dayyani M, Heravi-Moussavi A, Moattar MH, Kerachian MA: DMRFusion: A differentially methylated region detection tool based on the ranked fusion method. Genomics 2018, 110(6):366-374.

18. Egger G, Liang G, Aparicio A, Jones PA: Epigenetics in human disease and prospects for epigenetic therapy. Nature 2004, 429(6990):457-463.

19. Cedoz PL, Prunello M, Brennan K, Gevaert O: MethylMix 2.0: an R package for identifying DNA methylation genes. Bioinformatics 2018, 34(17):3044-3046.

20. Gevaert O: MethylMix: an R package for identifying DNA methylation-driven genes. Bioinformatics 2015, 31(11):1839-1841.

21. Wang X, Zhang D, Zhang C, Sun Y: Identification of epigenetic methylation-driven signature and risk loci associated with survival for colon cancer. Annals of translational medicine 2020, 8(6):324.

22. Dai QX, Liao YH, Deng XH, Xiao XL, Zhang L, Zhou L: A novel epigenetic signature to predict recurrence-free survival in patients with colon cancer. Clinica chimica acta; international journal of clinical chemistry 2020, 508:54-60.

23. Cheng S, Jiang Z, Xiao J, Guo H, Wang Z, Wang Y: The prognostic value of six survival-related genes in bladder cancer. Cell death discovery 2020, 6:58.

24. Wang Y, Li J, Shao C, Tang X, Du Y, Xu T, Zhao Z, Hu H, Sheng Y, Hu C et al: Systematic profiling of diagnostic and prognostic value of autophagy-related genes for sarcoma patients. BMC cancer 2021, 21(1):58.

25. Xia WX, Yu Q, Li GH, Liu YW, Xiao FH, Yang LQ, Rahman ZU, Wang HT, Kong QP: Identification of four hub genes associated with adrenocortical carcinoma progression by WGCNA. PeerJ 2019, 7:e6555.

26. Ritchie ME, Phipson B, Wu D, Hu Y, Law CW, Shi W, Smyth GK: limma powers differential expression analyses for RNA-sequencing and microarray studies. Nucleic acids research 2015, 43(7):e47.

27. Tian Y, Morris TJ, Webster AP, Yang Z, Beck S, Feber A, Teschendorff AE: ChAMP: updated methylation analysis pipeline for Illumina BeadChips. Bioinformatics 2017, 33(24):3982-3984.

28. Pan F, Chen T, Sun X, Li K, Jiang X, Forsti A, Zhu Y, Lai M: Prognosis Prediction of Colorectal Cancer Using Gene Expression Profiles. Frontiers in oncology 2019, 9:252.

29. Wen S, He L, Zhong Z, Mi H, Liu F: Prognostic Model of Colorectal Cancer Constructed by Eight Immune-Related Genes. Frontiers in molecular biosciences 2020, 7:604252.

30. Zhao QQ, Jiang C, Gao Q, Zhang YY, Wang G, Chen XP, Wu SB, Tang J: Gene expression and methylation profiles identified CXCL3 and CXCL8 as key genes for diagnosis and prognosis of colon adenocarcinoma. Journal of cellular physiology 2020, 235(5):4902-4912.

31. Huang L, Chen C, Zhang G, Ju Y, Zhang J, Wang H, Li J: STK33 overexpression in hypopharyngeal squamous cell carcinoma: possible role in tumorigenesis. BMC cancer 2015, 15:13.

32. Yang T, Song B, Zhang J, Yang GS, Zhang H, Yu WF, Wu MC, Lu JH, Shen F: STK33 promotes hepatocellular carcinoma through binding to c-Myc. Gut 2016, 65(1):124-133.

33. Wang P, Cheng H, Wu J, Yan A, Zhang L: STK33 plays an important positive role in the development of human large cell lung cancers with variable metastatic potential. Acta biochimica et biophysica Sinica 2015, 47(3):214-223.

34. Yin MD, Ma SP, Liu F, Chen YZ: Role of serine/threonine kinase 33 methylation in colorectal cancer and its clinical significance. Oncology letters 2018, 15(2):2153-2160.

35. Flebbe H, Hamdan FH, Kari V, Kitz J, Gaedcke J, Ghadimi BM, Johnsen SA, Grade M: Epigenome Mapping Identifies Tumor-Specific Gene Expression in Primary Rectal Cancer. Cancers (Basel) 2019, 11(8).

36. Roberts DL, O'Dwyer ST, Stern PL, Renehan AG: Global gene expression in pseudomyxoma peritonei, with parallel development of two immortalized cell lines. Oncotarget 2015, 6(13):10786-10800.

37. Martinez C, Rodino-Janeiro BK, Lobo B, Stanifer ML, Klaus B, Granzow M, Gonzalez-Castro AM, Salvo-Romero E, Alonso-Cotoner C, Pigrau M et al: miR-16 and miR-125b are involved in barrier function dysregulation through the modulation of claudin-2 and cingulin expression in the jejunum in IBS with diarrhoea. Gut 2017, 66(9):1537-1538.

38. Ashikari D, Takayama K, Obinata D, Takahashi S, Inoue S: CLDN8, an androgen-regulated gene, promotes prostate cancer cell proliferation and migration. Cancer Sci 2017, 108(7):1386-1393.

39. Wu J, Gao F, Xu T, Li J, Hu Z, Wang C, Long Y, He X, Deng X, Ren D et al: CLDN1 induces autophagy to promote proliferation and metastasis of esophageal squamous carcinoma through AMPK/STAT1/ULK1 signaling. Journal of cellular physiology 2020, 235(3):2245-2259.

40. Kerachian MA, Javadmanesh A, Azghandi M, Shariatpanahi AM, Yassi M, Davodly ES, Talebi A, Khadangi F, Soltani G, Hayatbakhsh A et al: Crosstalk between DNA methylation and gene expression in colorectal cancer, a potential plasma biomarker for tracing this tumor. Scientific reports 2020, 10(1).

41. Feodorova Y, Tashkova D, Koev I, Todorov A, Kostov G, Simitchiev K, Belovejdov V, Dimov R, Sarafian V: Novel insights into transcriptional dysregulation in colorectal cancer. Neoplasma 2018, 65(3):415-424.

42. Li M, Zhao LM, Li SL, Li J, Gao B, Wang FF, Wang SP, Hu XH, Cao J, Wang GY: Differentially expressed lncRNAs and mRNAs identified by NGS analysis in colorectal cancer patients. Cancer medicine 2018, 7(9):4650-4664.

43. Liu GJ, Wang YJ, Yue M, Zhao LM, Guo YD, Liu YP, Yang HC, Liu F, Zhang X, Zhi LH et al: High expression of TCN1 is a negative prognostic biomarker and can predict neoadjuvant chemosensitivity of colon cancer. Scientific reports 2020, 10(1).

44. Jiang L, Tolani B, Yeh CC, Fan Y, Reza JA, Horvai AE, Xia E, Kratz JR, Jablons DM, Mann MJ: Differential gene expression identifies KRT7 and MUC1 as potential metastasis-specific targets in sarcoma. Cancer management and research 2019, 11:8209-8218.

45. Wang JY, Wang CL, Wang XM, Liu FJ: Comprehensive analysis of microRNA/mRNA signature in colon adenocarcinoma. European review for medical and pharmacological sciences 2017, 21(9):2114-2129.

46. Giordano G, Parcesepe P, D'Andrea MR, Coppola L, Di Raimo T, Remo A, Manfrin E, Fiorini C, Scarpa A, Amoreo CA et al: JAK/Stat5-mediated subtype-specific lymphocyte antigen 6 complex, locus G6D (LY6G6D) expression drives mismatch repair proficient colorectal cancer. Journal of experimental & clinical cancer research : CR 2019, 38(1):28.

47. Guan J, Umapathy G, Yamazaki Y, Wolfstetter G, Mendoza P, Pfeifer K, Mohammed A, Hugosson F, Zhang H, Hsu AW et al: FAM150A and FAM150B are activating ligands for anaplastic lymphoma kinase. eLife 2015, 4:e09811.

48. Janostiak R, Malvi P, Wajapeyee N: Anaplastic Lymphoma Kinase Confers Resistance to BRAF Kinase Inhibitors in Melanoma. iScience 2019, 16:453-467.

49. Hallberg B, Palmer RH: Mechanistic insight into ALK receptor tyrosine kinase in human cancer biology. Nat Rev Cancer 2013, 13(10):685-700.

50. Yotani T, Yamada Y, Arai E, Tian Y, Gotoh M, Komiyama M, Fujimoto H, Sakamoto M, Kanai Y: Novel method for DNA methylation analysis using high-performance liquid chromatography and its clinical application. Cancer Sci 2018, 109(5):1690-1700.

Table 1. Clinical information of TCGA and GEO dataset

	sample details for DEGs from TCGA			sample details for DMGs from TCGA			GSE39582 for validation
	Tumor	Normal	Overall	Tumor	Normal	Overall	Tumor	Normal	Overall
	(N=616)	(N=51)	(N=667)	(N=388)	(N=45)	(N=433)	(N=566)	(N=19)	(N=585)
Gender
female	288 (46.8%)	28 (54.9%)	316 (47.4%)	179 (46.1%)	21 (46.7%)	200 (46.2%)	256 (45.2%)	7 (36.8%)	263 (45.0%)
male	328 (53.2%)	23 (45.1%)	351 (52.6%)	209 (53.9%)	24 (53.3%)	233 (53.8%)	310 (54.8%)	12 (63.2%)	322 (55.0%)
Age
<=60	192 (31.2%)	14 (27.5%)	206 (30.9%)	148 (38.1%)	11 (24.4%)	159 (36.7%)	157 (27.7%)	3 (15.8%)	160 (27.4%)
>60	424 (68.8%)	37 (72.5%)	461 (69.1%)	240 (61.9%)	34 (75.6%)	274 (63.3%)	409 (72.3%)	16 (84.2%)	425 (72.6%)
Pathologic Stage
I	103 (16.7%)	8 (15.7%)	111 (16.6%)	53 (13.7%)	5 (11.1%)	58 (13.4%)	33 (5.8%)	5 (26.3%)	38 (6.5%)
II	228 (37.0%)	24 (47.1%)	252 (37.8%)	144 (37.1%)	21 (46.7%)	165 (38.1%)	264 (46.6%)	7 (36.8%)	271 (46.3%)
III	178 (28.9%)	9 (17.6%)	187 (28.0%)	119 (30.7%)	10 (22.2%)	129 (29.8%)	205 (36.2%)	5 (26.3%)	210 (35.9%)
IV	86 (14.0%)	9 (17.6%)	95 (14.2%)	52 (13.4%)	9 (20.0%)	61 (14.1%)	60 (10.6%)	0 (0%)	60 (10.3%)
Missing	21 (3.4%)	1 (2.0%)	22 (3.3%)	20 (5.2%)	0 (0%)	20 (4.6%)	4 (0.7%)	2 (10.5%)	6 (1.0%)
AJCC-T
T1	19 (3.1%)	2 (3.9%)	21 (3.1%)	10 (2.6%)	0 (0%)	10 (2.3%)	11 (1.9%)	1 (5.3%)	12 (2.1%)
T2	104 (16.9%)	7 (13.7%)	111 (16.6%)	54 (13.9%)	5 (11.1%)	59 (13.6%)	45 (8.0%)	4 (21.1%)	49 (8.4%)
T3	421 (68.3%)	36 (70.6%)	457 (68.5%)	271 (69.8%)	37 (82.2%)	308 (71.1%)	367 (64.8%)	12 (63.2%)	379 (64.8%)
T4	69 (11.2%)	6 (11.8%)	75 (11.2%)	50 (12.9%)	3 (6.7%)	53 (12.2%)	119 (21.0%)	0 (0%)	119 (20.3%)
Missing	3 (0.5%)	0 (0%)	3 (0.4%)	3 (0.8%)	0 (0%)	3 (0.7%)	24 (4.2%)	2 (10.5%)	26 (4.4%)
AJCC-M
M0	455 (73.9%)	35 (68.6%)	490 (73.5%)	263 (67.8%)	27 (60.0%)	290 (67.0%)	482 (85.2%)	17 (89.5%)	499 (85.3%)
M1	85 (13.8%)	9 (17.6%)	94 (14.1%)	51 (13.1%)	9 (20.0%)	60 (13.9%)	61 (10.8%)	0 (0%)	61 (10.4%)
MX	66 (10.7%)	6 (11.8%)	72 (10.8%)	66 (17.0%)	8 (17.8%)	74 (17.1%)	3 (0.5%)	0 (0%)	3 (0.5%)
Missing	10 (1.6%)	1 (2.0%)	11 (1.6%)	8 (2.1%)	1 (2.2%)	9 (2.1%)	20 (3.5%)	2 (10.5%)	22 (3.8%)
AJCC-N
N0	349 (56.7%)	34 (66.7%)	383 (57.4%)	211 (54.4%)	28 (62.2%)	239 (55.2%)	302 (53.4%)	12 (63.2%)	314 (53.7%)
N1	147 (23.9%)	8 (15.7%)	155 (23.2%)	101 (26.0%)	10 (22.2%)	111 (25.6%)	134 (23.7%)	3 (15.8%)	137 (23.4%)
N2	116 (18.8%)	9 (17.6%)	125 (18.7%)	72 (18.6%)	7 (15.6%)	79 (18.2%)	98 (17.3%)	2 (10.5%)	100 (17.1%)
Missing	4 (0.6%)	0 (0%)	4 (0.6%)	4 (1.0%)	0 (0%)	4 (0.9%)	32 (5.7%)	2 (10.5%)	34 (5.8%)

Abbreviation: AJCC, American Joint Committee on Cancer.

Table 2. The information of MDGs

GeneName	Tumor_AVG¹	Normal_AVG²	deltaBeta	P.Value		Cor³		Cor p-value⁴
ARHGAP20	0.56	0.13	-0.44		6.90E-17		-0.3423		3.02E-12
CLDN1	0.47	0.91	0.44		1.66E-33		-0.4262		8.90E-19
EPHX4	0.61	0.97	0.36		1.08E-19		-0.4539		2.26E-21
FAM150A	0.55	0.25	-0.34		4.76E-16		-0.4362		1.09E-19
KCNJ12	0.33	0.02	-0.31		1.21E-17		-0.4154		8.02E-18
KRT7	0.73	0.31	-0.51		1.59E-38		-0.454		2.20E-21
LY6G6D	0.40	0.76	0.32		4.07E-36		-0.3857		2.17E-15
SPTBN5	0.61	0.91	0.31		1.40E-28		-0.3836		3.16E-15
STK33	0.46	0.11	-0.36		9.67E-17		-0.5458		6.91E-32
TCN1	0.44	0.81	0.36		2.94E-26		-0.4672		1.07E-22

¹Tumor_AVG, average methylation degree of tumor samples.

²Normal_AVG, average methylation degree of normal samples.

³Cor, Correlation between methylation degree and gene expression.

⁴Cor p-value, the test value of correlation.

Table 3. Statistical information of expression and methylation values in MDGs.

GeneName	Expression datasets
	dataset for discovery	datasets for validation
	TCGA(READ&COAD)	GSE44076	GSE21815	GSE28000	GSE39582
ARHGAP20	-0.75	-0.76	-1.74	-0.84	-0.90
KCNJ12	-0.61	-0.32	-1.17	-1.04	/
STK33	-0.59	-0.01	-0.44	-1.29	-0.19
KRT7	0.60	1.22	0.58	0.24	0.70
SPTBN5	0.60	0.18	1.67	0.50	0.34
CLDN1	0.77	4.92	5.06	3.14	3.98
EPHX4	1.11	2.80	4.50	1.82	2.45
FAM150A	1.16	1.40	1.63	1.69	/
LY6G6D	1.48	3.84	/	/	/
TCN1	1.56	1.91	3.42	2.20	1.61
GeneName	Methylation datasets
	dataset for discovery	datasets for validation
	TCGA	GSE48684	GSE53051	GSE77718	GSE101764
KRT7	-0.51	-0.38	-0.30	-0.34	-0.32
ARHGAP20	-0.44	-0.38	-0.29	-0.38	-0.31
STK33	-0.36	-0.36	-0.25	-0.37	-0.26
FAM150A	-0.34	-0.34	-0.25	-0.34	-0.26
KCNJ12	-0.31	-0.25	-0.23	-0.33	-0.23
SPTBN5	0.31	0.30	0.22	0.21	0.23
LY6G6D	0.32	0.17	0.27	0.19	0.23
TCN1	0.36	0.25	0.29	0.26	0.23
EPHX4	0.36	0.22	0.20	0.14	0.21
CLDN1	0.44	0.22	0.35	0.23	0.31

The number of MDGs in expression datasets means logFC value, while in methylation means deltaBeta value.

Table 4. The performance of the MDGs as independent indicator using RF, LR and SVM algorithm.

GeneName	RF algorithm		LR algorithm		SVM algorithm
GeneName	AUC	P-value	AUC	P-value	AUC	P-value
CLDN1	0.988	0	0.999	0	0.978	0
EPHX4	0.971	0	0.991	0	0.959	1.55E-246
TCN1	0.966	1.18E-214	0.979	0	0.932	1.56E-129
ARHGAP20	0.921	2.12E-141	0.915	1.03E-88	0.846	9.53E-45
LY6G6D	0.886	2.32E-81	0.772	2.15E-20	0.763	3.35E-24
FAM150A	0.869	1.82E-41	0.885	1.82E-62	0.815	1.24E-32
KCNJ12	0.857	5.60E-50	0.778	1.36E-19	0.732	3.88E-15
KRT7	0.860	4.01E-44	0.858	2.12E-53	0.727	1.26E-14
STK33	0.842	1.78E-39	0.841	1.20E-39	0.721	2.96E-14
SPTBN5	0.678	3.19E-07	0.596	0.007856458	0.5	1

Abbreviation:

RF: Random Forest; LR: logistic regression; SVM: Support vector machine.

Table 5. The importance of diagnostic biomarkers

Predict factor	Normal	Tumor	MeanDecreaseAccuracy	MeanDecreaseGini
CLDN1	0.29	0.10	0.17	115.72
EPHX4	0.17	0.04	0.09	87.21
TCN1	0.08	0.01	0.04	49.64
ARHGAP20	0.12	0.03	0.07	41.59
FAM150A	0.01	0.01	0.01	14.79
LY6G6D	0.05	0.00	0.02	10.32
KRT7	0.02	0.00	0.01	6.76
STK33	0.04	0.01	0.02	6.65
KCNJ12	0.06	0.00	0.02	6.58
SPTBN5	0.00	0.00	0.00	0.72

The MeanDecreaseAccuracy and MeanDecreaseGini of each indicator was produced by the importance function in Random Forest model.

No competing interests reported.

TableS1.xls
Additional file 1: Table S1. Detailed information of DEGs.
TableS2.xls
Additional file 2: Table S2. Detailed information of DMGs
Figure S1. PCA results of the merged expression data. (A) READ and COAD of TCGA. (B) TCGA data and GTEx data.Vocano plot on DEGs using GEO datasets. (C) GSE21815 (D) GSE28000 (E) GSE39582 (F) GSE44076
Figure S2． ROC of the diagnostic prediction model with candidate biomarkers using SVM algorithm.
Figure S3． ROC of the diagnostic prediction model with candidate biomarkers using LR algorithm.

Identification of methylation driven biomarkers for diagnosis and prognosis in colorectal cancer by Integrative Analysis of TCGA, GTEx, and GEO database

Status:

Version 1

Abstract

Figures

Introduction

Materials And Methods

Results

Discussion

Conclusions

Declarations

References

Tables

Additional Declarations

Supplementary Files

Status:

Version 1
